Insect herbivory in fragmented forests: it’s complicated

/ Chris Buddle / 1 Comment

I’m excited to announce a recent paper to come out of the lab, by former PhD student Dorothy Maguire, and with Dr. Elena Bennett. In this work, we studied the amount of insect herbivory in forest patches in southern Quebec: the patches themselves varied by degree of fragmentation (ie, small versus large patches) and by connectivity (ie, isolated patches, or connected to other forest patches). We studied herbivory on sugar maple trees, both in the understory and canopy, and at the edges of the patches. Our research is framed in the context of “ecosystem services” given that leaf damage by insects is a key ecological process in deciduous forests, and can affect the broader services that forest patches provide, from supporting biodiversity through to aesthetic value. Dorothy’s research was part of a larger project about ecosystem services and management in the Montérégie region of Quebec.

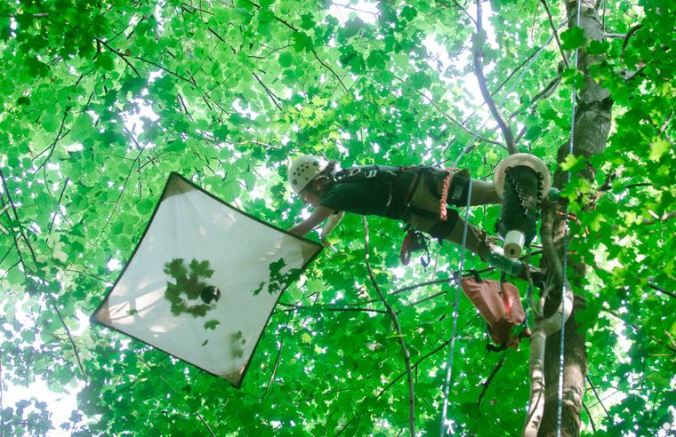

Dorothy Maguire sampling insects in the tree canopy (Photo by Alex Tran)

The work was tremendously demanding, as Dorothy had to select sites, and within each site sample herbivory at multiple locations, including the forest canopy (done with the “single rope technique). Dorothy returned to sites many times over the entire summer to be able to assess trends over time. Herbivory itself was estimated as damage to leaves, so after the field season was completed, thousands of leaves were assessed for damage. The entire process was repeated over two years. Yup: doing a PhD requires a suite of skills in the field and lab, and there is no shortage of mind-numbing work… Dedication is key!

As with most research, we had high hopes that the results would be clear, convincing, and support our initial predictions – we certainly expected that forest fragmentation and isolation in our study landscape would have a strong effect on herbivory – after all, our study forests varied dramatically in size and isolation, and herbivory is a common and important ecological process, and insect herbivores are known (from the literature) to be affected by fragmentation.



QuebecLandscape

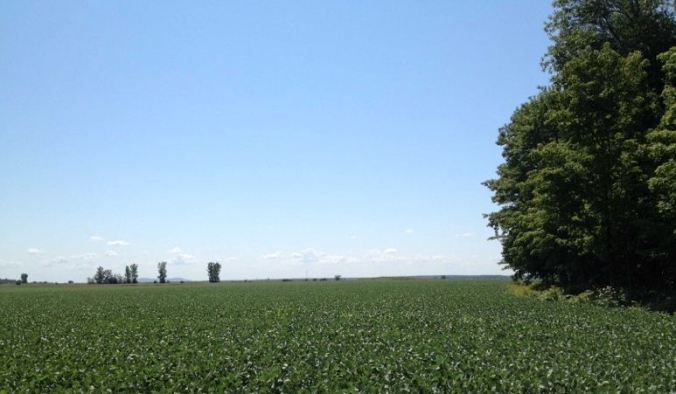

The landscape of southern Quebec. Lots of agriculture, some patches of forest.



However, as with so much of ecological research, the results were not straightforward! “It’s complicated” become part of the message: patterns in herbivory were not consistent across years, and there were interactions between some of the landscape features and location within each patch. For example, canopies showed lower levels of herbivory compared to the understory, but only in isolated patches, and only in one of the study years! We also found that edges had less herbivory in connected patches, but only in the first year of the study. Herbivory also increased as the season progressed, which certainly makes biological sense.

So yes, it’s complicated. At first glance, the results may appear somewhat underwhelming, and the lack of a strong signal could be viewed as disappointing. However, we see it differently: we see it as more evidence that “context matters” a great deal in ecology. It’s important not to generalize about insect herbivory based on sampling a single season, or in only one part of a forest fragment. The story of insect herbivory in forest fragments can only be told if researchers look up to the canopy and out to the edges; the story is incomplete when viewed over a narrow time window. In the broader context of forest management and ecosystem services, we certainly have evidence to support the notion that herbivory is affected by the configuration of the landscape. But, when thinking about spatial scale and ecosystem processes, careful attention to patterns these processes “within” forest patches is certainly required.

We hope this work will inspire others to think a little differently about insect herbivory in forest fragments. Dorothy’s hard work certainly paid off, and although the story is complicated, it’s also immensely informative and interesting, and sheds light on how big landscapes relate to small insects eating sugar maple leaves.

Reference:

Maguire et al. 2016: Within and among patch variability in patterns of insect herbivory across a fragmented forest landscape. PlosOne DOI: 10.1371/journal.pone.0150843



Advertisement

Heating, cooling, and trying to drown Arctic pseudoscorpions

/ Chris Buddle / 3 Comments

The Beringian Arctic pseudoscorpion is a charming Arachnid, living under rocks near sub-arctic rivers and streams, in primarily unglaciated parts of the Yukon. It has captured my fascinating for years, and the story of its natural history is starting to unfold. However, some fundamentals about the biology of Wyochernes asiaticus remain unknown: as the most northern pseudoscorpion in North America, how does it survive in such cold climates? How is it adapted to frequent flooding that occurs in its primary habitat, next to streams and rivers?

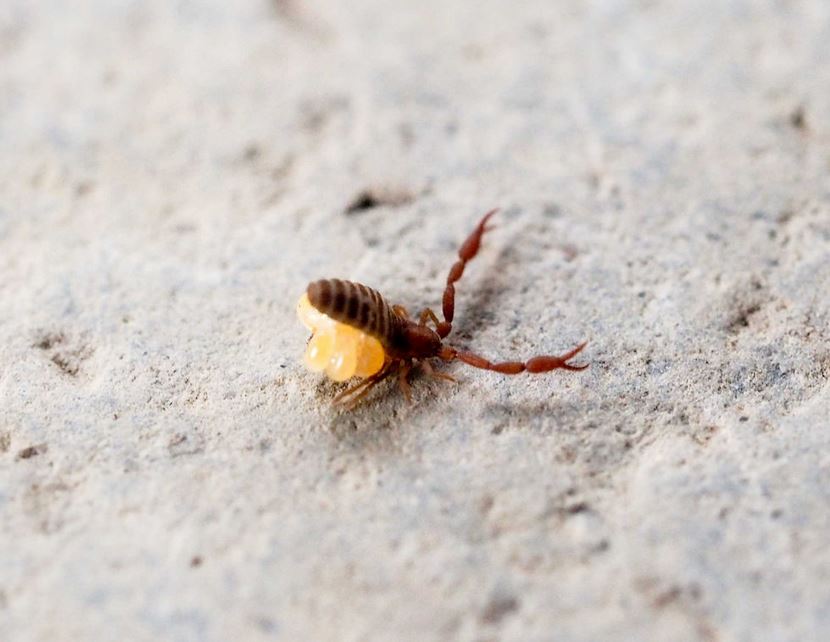

The Arctic pseudoscorpion, Wyochernes asiaticus

The Arctic pseudoscorpion, Wyochernes asiaticus

Science is a collaborative process, and I teamed up with two thermal biologists to start to answer some of these physiological questions. PhD student Susan Anthony and Prof. Brent Sinclair*, both from Western University in Ontario, came to the Yukon with us last summer, and together we collected pseudoscorpions at Sheep Creek, just north of the Arctic Circle. Part of Susan’s PhD research is about the thermal biology of Arachnids, so Susan and Brent wanted to see what we could learn about Arctic pseudoscorpions. They brought the wee arachnids back to Ontario, and Susan ran a series of experiments, resulting in a recent publication (in Polar Biology).

Susan Anthony and Brent Sinclair, both from Western University.

Susan Anthony and Brent Sinclair, both from Western University.

The experiments may sound a little cruel, but they are the standard approach when studying some of the cold tolerance, thermal biology and physiology of arthropods. Susan heated up and cooled down the critters, and discovered that they can survive up to about 38 degrees Celsius, and down to about -7 degrees Celsius. The upper threshold is relatively low compared to other arthropods, which makes sense since W. asiaticus lives at high latitudes. Because the specimens didn’t survive freezing, we know it’s ‘freeze avoidant’ rather than ‘freeze tolerant’. This is aligns with what we know from many other northern (or southern! i.e, in the Antarctic) arthropods. Presumably the pseudoscorpions adapt to the north by being able to supercool, or perhaps by cryoprotective dehydration,. However, its lower threshold isn’t that low, given the extreme cold winter temperatures in the Yukon. But since our collections were in the mid-summer, this might mean it’s not yet started to adapt, physiologically, for the colder winter conditions.

The next experiments involved immersing the pseudoscorpions in water and seeing how long they survive. This was done because we were very curious to know how these tiny animals might live in habitats that flood frequently. Amazingly, 50 percent of the arachnids survived under water for up to 17 days (!), and after testing with de-oxygenated water, Susan had a similar result: they certainly weren’t relying on oxygen in the water for breathing. Susan did notice, however, that they appeared to have a silvery bubble or ‘film’ around their bodies when immersed so we assume they used this air bubble for breathing during the immersion period, something known from other arachnids.

Sheep Creek, Yukon - a habitat that frequently floods: now we know how the tiny Arachnids survive the flooding!

Sheep Creek, Yukon – a habitat that frequently floods: now we know how the tiny Arachnids survive the flooding!

Putting this in the context of the pseudoscorpion’s habitat in the Yukon: it seems that the sub-arctic rivers in the Yukon typically flood for periods up to 10 days, in the spring. Our little arachnid likely just hunkers down in their habitats under rocks, breathing from air trapped around its body, waiting for floodwaters to recede.

I’m very excited about this paper, in part because of what we have learned that links the ecology of the species to its physiology. I’m also excited because this work represents a major advancement in the fundamental knowledge about Arachnids. Our work is the first to uncover any basic biology related to the physiological adaptations of pseudoscorpions to cold/heat and to immersion tolerance.

This is kind of stunning: the Pseudoscorpiones are an entire Order of Arachnids, yet nobody has ever worked to figure out how they adapt, physiologically, to extreme environmental conditions. AN ENTIRE ORDER! And it’s 2015! An analogy would be figuring out that some butterflies (Order Lepidoptera) bask in the sun, to thermoregulate. Or, like figuring out how ducks (Order: Anseriformes) don’t freeze their feet when standing on ice. These are ‘textbook’ examples of thermal biology and physiology – such facts could be considered common knowledge. Yet looking to the Arachnids, the story of the thermal biology of pseudoscorpions has only just begun. One paper at a time, we will continue to make progress.

The Arctic pseudoscorpion: it has stories to tell. Photo by C. Ernst, reproduced here with permission.

The Arctic pseudoscorpion: it has stories to tell. Photo by C. Ernst, reproduced here with permission.

As Tschinkel & Wilson state, every species has an epic tale to tell. Even tiny arachnids that live under rocks above the Arctic circle are proving interesting for many scientific disciplines: each chapter of its story is starting to unfold, and I’m quite sure there are a lot of very interesting chapters still to come.

Reference:

Anthony, S.E., C.M. Buddle and B.J. Sinclair. 2015. Thermal biology and immersion tolerance of the Beringian pseudoscorpion Wyochernes asiaticus. Polar Biology.

——

*A sincere thanks to Brent and Susan for including me on this paper, and for being willing to come to the Yukon with our team, to do collaborative research. I’ve learned a great deal in the process, and am delighted that partnerships between ecologists and physiologists can work out so well.

Monitoring northern biodiversity: picking the right trap for collecting beetles and spiders

/ Chris Buddle / 1 Comment

Ecological monitoring is an important endeavour as we seek to understand the effects of environmental change on biodiversity. We need to benchmark the status of our fauna, and check-in on that fauna on a regular basis: in this way we can, for example, better understand how climate change might alter our earth systems. That’s kind of important.

A northern ground beetle, Elaphrus lapponicus. Photo by C. Ernst.

A northern ground beetle, Elaphrus lapponicus. Photo by C. Ernst.

With that backdrop, my lab was involved with a Northern Biodiversity Program a few years ago (a couple of related papers can be found here and here), with a goal of understanding the ecological structure of Arthropods of northern Canada. The project was meant to benchmark where we are now, and one outcome of the work is that we are able to think about a solid framework for ecological monitoring into the future.

A few weeks ago our group published a paper* on how to best monitor ground-dwelling beetles and spiders in northern Canada. The project resulted in over 30,000 beetles and spiders being collected, representing close to 800 species (that’s a LOT of diversity!). My former PhD student Crystal Ernst and MSc student Sarah Loboda looked at the relationship between the different traps we used for collecting these two taxa, to help provide guidelines for future ecological monitoring. For the project, we used both a traditional pitfall trap (essentially a white yogurt container stuck in the ground, with a roof/cover perched above it) and a yellow pan trap (a shallow yellow bowl, also sunk into the ground, but without a cover). Traps were placed in grids, in two different habitats (wet and “more wet”), across 12 sites spanning northern Canada, and in three major biomes (northern boreal, sub-Arctic, and Arctic).

Here’s a video showing pan traps being used in the tundra:

Both of the trap types we used are known to be great at collecting a range of taxa (including beetles and spiders), and since the project was meant to capture a wide array of critters, we used them both. Crystal, Sarah and I were curious whether, in retrospect, both traps were really necessary for beetles and spiders. Practically speaking, it was a lot of work to use multiple traps (and to process the samples afterwards), and we wanted to make recommendations for other researchers looking to monitor beetles and spiders in the north.

The story ends up being a bit complicated… In the high Arctic, if the goal is to best capture the diversity of beetles and spiders, sampling in multiple habitats is more important than using the two trap types. However, the results are different in the northern boreal sites: here, it’s important to have multiple trap types (i.e., the differences among traps were more noticeable) and the differences by habitat were less pronounced. Neither factor (trap type or habitat) was more important than the other when sampling in the subarctic. So, in hindsight, we can be very glad to have used both trap types! It was worth the effort, as characterizing the diversity of beetles and spiders depended on both sampling multiple habitats, and sampling with two trap types. There were enough differences to justify using two trap types, especially when sampling different habitats in different biomes. The interactions between trap types, habitats, and biomes was an unexpected yet important result.

Our results, however, are a little frustrating when thinking about recommendations for future monitoring. Using more than one trap type increases efforts, costs, and time, and these are always limited resources. We therefore recommend that future monitoring in the north, for beetles and spiders, could possibly be done with a trap that’s a mix between the two that we used: a yellow, roof-less pitfall trap. These traps would provide the best of both options: they are deeper than a pan trap (likely a good for collecting some Arthropods), but are yellow and without a cover (other features that are good for capturing many flying insects). These are actually very similar to a design that is already being used with a long-term ecological monitoring program in Greenland. We think they have it right**.

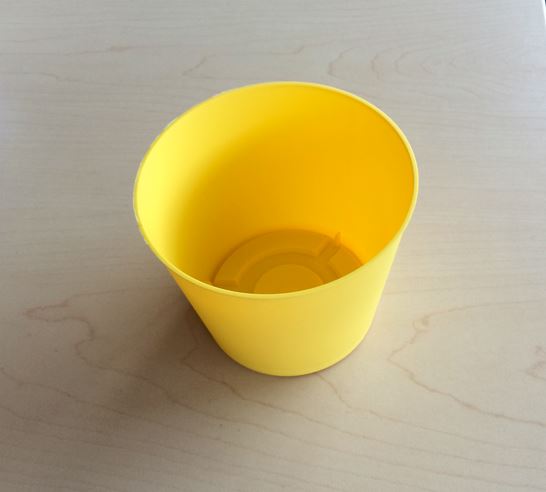

A yellow pitfall trap - the kind used in Greenland, and the one we recommend for future monitoring in Canada's Arctic.

A yellow pitfall trap – the kind used in Greenland, and the one we recommend for future monitoring in Canada’s Arctic.

In sum, this work is really a “methodological” study, which when viewed narrowly may not be that sexy. However, we are optimistic that this work will help guide future ecological monitoring programs in the north. We are faced with increased pressures on our environment, and a pressing need to effectively track these effects on our biodiversity. This requires sound methods that are feasible and provide us with a true picture of faunal diversity and community structure.

It looks to me like we can capture northern beetles and spiders quite efficiently with, um, yellow plastic beer cups. Cheers to that!

Reference

Ernst, C, S. Loboda and CM Buddle. 2015. Capturing Northern Biodiversity: diversity of arctic, subarctic and northern boreal beetles and spiders are affected by trap type and habitat. Insect Conservation and Diversity DOI: 10.1111/icad.12143

——

* The paper isn’t open access. One of the goals of this blog post is to share the results of this work even if everyone can’t access the paper directly. If you want a copy of the paper, please let me know and I’ll be happy to send it to you. I’m afraid I can’t publish all of our work in open access journals because I don’t have enough $ to afford high quality OA journals.

** The big caveat here is that a proper quantitative study that compares pan and and pitfall traps to the “yellow roof-less pitfall” traps is required. We believe it will be the best design, but belief does need to be backed up with data. Unfortunately these kind of trap-comparison papers aren’t usually high on the priority list.

Vouchers? What vouchers? Revealing a crisis in arthropod-based research

/ Chris Buddle / 14 Comments

Here’s a hypothetical scenario:

Q: “Hey I see you published a paper that shows the wolf spider Trochosa ruricola occurs up in the Ottawa Valley – I didn’t realize it had reached that far. It’s an invasive species, so tracking its distribution is quite important”

A: “Yeah, we too were surprised it was up that far: to our knowledge, only Trochosa terricola was in that part of Ontario”

Q: “It is tricky to tell apart those two species! What museum did you deposit specimens in? I’d like to take a look at them to verify the identification.”

A: “Um, we didn’t get around to depositing specimens in the museum. There might still be some in the lab. I’ll have to get back to you...”

Not cool.  And also much too common.

Bottom line: when specimen-based research is done with arthropods, whether it is a biodiversity inventory, a community ecology study, or a taxonomic revision, the researchers must deposit voucher specimens in a research museum or institutional collection. This is only way to truly verify that the work is accurate, that people are calling things by the same name, and it puts a stamp in time for the research. Without deposition of these voucher specimens (somewhere that is publicly accessible and curated, and along with data about time, place and collector) the research cannot be verified, and this goes against the principle of repeatability in science.

Beetles in drawers: a great example of specimens in a curated museum, and shows how such specimens can be used for all kind of research!

Beetles in drawers: a great example of specimens in a curated museum, and shows how such specimens can be used for all kind of research!

This is a no-brainer, right? It’s time to test whether or not scientists actually bother to deposit voucher specimens…. As part of a graduate-level* class in Entomology last winter, we surveyed the literature to find out the frequency of voucher deposition with arthropod-based research. We looked at papers to see what percentage actually report on vouchers, assessed whether the frequency of voucher deposition varied by research type, study organisms, institution (of researcher), and whether voucher deposition has changed over time.

We published the results a few weeks ago, in the Open Access journal PeerJ, and our work has revealed a crisis in arthropod-based research. Overall, rates of voucher specimen deposition were very low, as only 25% of papers report on the deposition of voucher specimens. This is horrible, and essentially means that the specimens from the majority of papers published cannot be traced to a collection, and cannot be verified.

Some disciplines were worse than others, as crustacean researchers deposited vouchers only 6% of the time, as compared to the relatively higher rate of voucher deposition by entomologists, at 46%. Here is a summary of the main findings:

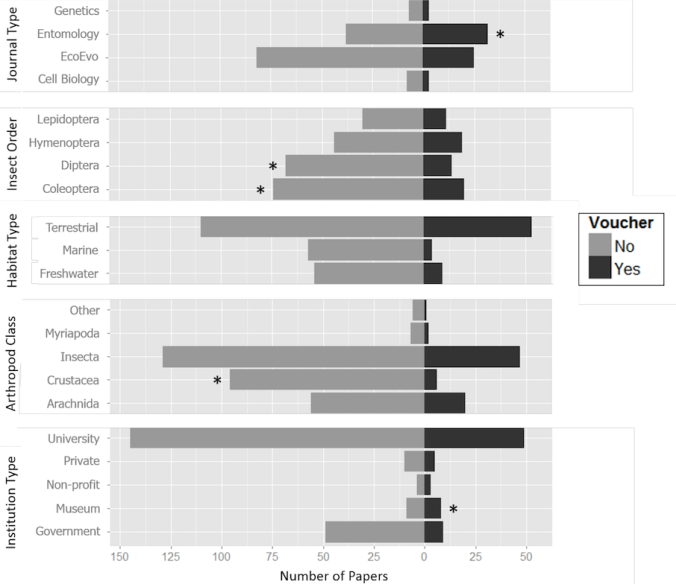

The main findings of our research: the asterisk illustrates a significant difference relative to a global mean.

The main findings of our research: the asterisk illustrates a significant difference relative to a global mean. Figure from our paper, published here.

Is there any good news? Perhaps so… when looking at rate of voucher deposition over time, more papers are reporting about vouchers in 2014 (35%) compared to 1989 (below 5%).

At the end of our paper we provide some conclusions and recommendations, and these are repeated here:

  1. PIs must be responsible and proactive on the process of voucher specimen deposition, from the start of any project.
  2. Graduate students need to be mentored appropriately about the importance of voucher specimen deposition.
  3. It needs to be recognized that voucher specimens are important for all branches of arthropod research – there is no reason that entomologists should do better than, say, crustacean biologists.
  4. Close collaboration between Universities/Research Centres and Museums is required, so that there is an agreed up, and easy process for all researchers to deposit vouchers.
  5. Everyone involved with arthropod-based research needs to work together to push for long-term, sustainable funding for institutional collections/museums so that proper curation of vouchers can be done.
  6. Publishers and editorial boards need to have clear policies about voucher specimens, so that any papers published are required to report on vouchers.

I recognize that the title of this post is provocative. Is it *really* a crisis?

I think it is: I think that even the best rate of voucher deposition that we report on is too low. We must aim to be closer to 100%. It’s important as we work to describe the world’s biodiversity, understand what is happening to our species in the face of climate change, or track the distribution of invasive species. It’s important that our hard work is more than a publication: our hard work is often a specimen, and that specimen needs to be accessible for future generations.

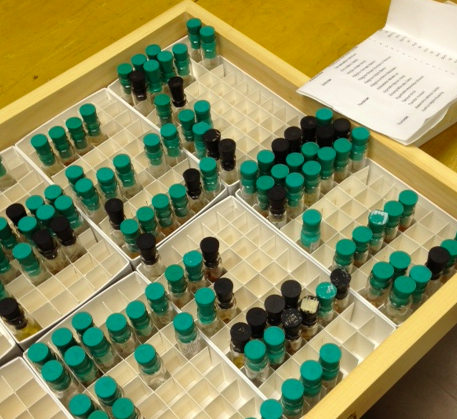

Voucher for critters than need to be stored in liquids looks something like this.

Voucher for critters than need to be stored in liquids looks something like this.

Reference:

Turney S, Cameron ER, Cloutier CA, Buddle CM. (2015) Non-repeatable science: assessing the frequency of voucher specimen deposition reveals that most arthropod research cannot be verified. PeerJ 3:e1168 https://dx.doi.org/10.7717/peerj.1168

* A most sincere thanks to my graduate students Shaun, Elyssa and Chris – these students did the lion’s share of this project, and took on this graduate class with great enthusiasm, maturity and motivation. You all inspire me!

Curiosity, passion and science: On the natural history of an Arctic pseudoscorpion

/ Chris Buddle / 7 Comments

I’m pleased to announce a publication about the natural history of a tiny, wonderful arachnid: the pseudoscorpion Wyochernes asiaticus.

The Arctic pseudoscorpion Wyochernes asiaticus (copyright C. Ernst, reproduced here with permission)

The Arctic pseudoscorpion Wyochernes asiaticus (photo by  C. Ernst, reproduced here with permission)

I’ve published quite a few papers, but this one is really special: it’s special because it’s about an obscure creature for which virtually *nothing* was known. It’s about a species with a fascinating distribution. To me, it’s an epic tale about a species that nobody really cares that much about. It’s special because it is research that was done just out of pure curiosity and fascination: there was no larger purpose, no great problem to solve, and no experiments to run*. It was based on observation and observation alone, and it was a long slog – done over many, many years (it took about 7-8 years to pull together this story, and this story is really only a prologue). Fundamentally this research was about trying to gather some base-line data about a small animal living in a big landscape.

The big landscape: A river above the Arctic circle: our pseudscorpion friend can be found under the rocks alongside this river.

The big landscape: A river above the Arctic circle: our pseudscorpion friend can be found under the rocks alongside this river.

This work presents some life-history data about a fascinating northern pseudoscorpion species, occurring only in the north-west of North America. As far as I know, it occurs only in regions that were primarily unglaciated during the last glaciation event which covered pretty much all of the northern half of the continent. However, unlike other Beringian species (e.g., the wooly mammoth), this little arachnid did not go extinct but rather continues to thrive in its somewhat unusual habitat under rocks, near rivers or streams.

After collecting and measuring nearly 600 specimens, I can now tell you a bit more about the species distribution in North America, and provide some insights into its life history traits. For example, larger females tended to have higher clutch sizes, a very common and well-known pattern with other arachnids, but there was certainly a paucity of data about this for pseudoscorpions. I also know that all its life stages can be collected in the Yukon in July, and that females can carry around quite a few young (over a dozen!).

But that’s about it. Beyond those fundamental life history measurements and comments on its distribution, the bulk of the species biology remains a mystery.

It may be possible to look at this work as a failure. Heck – a LOT of specimens were collected, by many, many enthusiastic helpers. It took some resources to get the work done (although it was mostly through stealth). A lot of time was spent at the microscope, and it certainly took a bit of time to pull together the paper. And what for? We still don’t know very much about the species: how does it disperse? How does it overwinter? How does it survive flooding of its habitat? How restrictive are the habitat affinities of the species? Do females and males tend to hang around the same rock, or do they mill about with others? What does it eat?

I don’t see this as frustrating, or discouraging, because it’s a start. Before thinking about bigger questions in ecology and evolution, your first need some basics. Only then is it possible to ask broader questions about, say, phylogeography, dispersal limitation, or behaviour.

I hope this work encourages others to seek out and discover new and interesting things about the unnoticed species that walk underfoot, live in tree-tops, swamps, or beneath park benches.

The Arctic pseudoscorpion, Wyochernes asiaticus

Another image of the Arctic pseudoscorpion, Wyochernes asiaticus taken during the 2015 field season

I was very pleased to publish this work in the Canadian Field-Naturalist. Sure, it’s not a ‘high impact’ journal, but it’s a rather special and unique journal for being an excellent location to publish work on the natural history of our species. I hope others consider this journal as an outlet for their curiosity-driven science. Over time, I hope the pendulum does swing, and as a scientific community we really embrace the value of “basic” natural history data. Without a fundamental working knowledge of our species we are hamstrung when it comes to solving the big environmental challenges facing our planet. It’s time to play catch-up. Let’s worry less about impact factors and show some love for smaller journals that are brave enough to keep on publishing about natural history. Let’s spend time observing our natural world, collecting interesting data just because.

I ended my paper with a paragraph about what it felt like to do this research. I am so thankful the editors allowed me to keep this paragraph. It’s important, and reflects my long-standing belief that the lines between a subjective love of nature, and objective observations about nature, should be blurred. They certainly are for me.

In conclusion, observing these marvelous animals in one of the most beautiful areas of the planet, was gratifying, awe-inspiring, and helped solidify a love of natural history. What has been learned is only the prologue to a truly astounding epic: many more discoveries await.

——-

*Please check out this amazing blog post about the value of ‘observation’ to ecology. It relates closely to what I have written.

© C.M. Buddle (2015)

Leading a discussion of a scientific paper

/ Chris Buddle / 3 Comments

I’m teaching a graduate class in Entomology this term, and part of that class involves students leading discussions about scientific papers in our discipline. These discussions are typically between 60 and 90 minutes, with a small group (4-6 individuals). This post provides some advice and guidelines around how to go about doing this. That being said, this is not a ‘one size fits all’ kind of world, especially when talking about science: you may have better or alternative approaches when discussing scientific papers – please comment, and share your ideas!

1. Provide a (quick) summary of the paper:

In most cases, you want to first provide the audience a brief but accurate overview of the paper. It’s often useful to do a little research about the authors – this provides a context that may be very helpful and may prove insightful later on. For example, do the authors have a publication record that aligns with the current paper? Are the authors graduate students or post-doc (not that it matters, but it does provide context!).

The focus on the summary should be about the Research Questions / Hypothesis, and to explain these you will also need to discuss an overall conceptual framework. This means you need to know this conceptual framework very well. After providing the broader context and framework, you should quickly go over the main methods, and the key results. You should act as a guide for your audience, and take them through the key results. Try not to spend a lot of time on more trivial aspects of a paper. In general, your summary should not delve too deeply in the discussion part of the paper.

Don’t forget: you are assuming everyone in the room has read the paper, so your overall introduction should be relatively short (no more than 10 minutes). More time may be required if a concept or methodological approach is particularly complex. Try not to provide opinions or critiques of the paper at this point in time – save this for the general discussion.

2. Ask for points of clarification:

Before proceeding with detailed discussion of the paper, you should ask the audience if they require clarification on anything in the paper. You are leading a discussion and therefore considered an ‘expert’ on the paper, and as such, should be prepared to handle these points of clarification – this will most likely require you to do a bit of research on areas of the paper that you do not understand!  It’s important you you make it clear that you are not starting a detailed critique (yet); you are first making sure that people all understand the critical ‘nuts and bolts’ of the paper.

3. Leading a discussion:

The majority of the time should be spent on the actual discussion.  There are many ways to do this, but here are some tips:

  • Try not to let your own opinion of the paper distract or take over – your goal is to get other people to reveal their own views; these may or may not agree with your own views! Be welcoming and accommodating to other people’s opinions and viewpoints. Never make anyone feel small or stupid, even if they make a goofy mistake.
  • That being said, make sure that you do have an opinion, and be willing to share it at some point
  • Prepare a list of questions that you could ask other people if the discussion needs help to get started. Always try to find positive points in a paper, even if the paper is, overall, very weak. Similarly, try to bring out negative features even if the paper is strong.  This means you have to sort out strong and negative parts of a paper for yourself (well ahead of time)
  • It’s sometimes a good idea to first go around the room and ask for something that people felt was strong and positive about the paper, and then do this again but ask for points of constructive criticism about the paper.
  • Don’t hesitate to ask people (specifically) for their views on some sections of this paper: a gentle push may be needed to get started on discussing the specifics, but this can be fruitful.
  • Since you are chairing the discussion, don’t be afraid to take control if the discussion wanders too far from where it needs to be, and/or if the discussion gets too trivial or mired in the weeds
  • Related, whenever possible, draw the discussion back to the actual research objectives, and try to broaden the discussion out to the overarching concenptual framework: are the results generalizable to other fields? Does the paper make broad and meaningful conclusions that will be long-lived and significant?
  • Towards the end of the discussion, it may be useful to ask people how they might have done the work differently. Or, stated another way, what could have been improved?

4. Summarize the discussion:

Spend the last five minutes of your time reminding people abou the actual research objectives, and provide a concise summary of the discussion that just wrapped up. Do this in an inclusive way, and give a nod to everyone in the room: make everyone feel that their points of views and opinions are taken seriously.   Try to get an overall consensus about the general quality of the paper, and one litmus test may be whether or not you would cite the paper in your own work, and in what context.

A guide for writing plain language summaries of research papers

/ Chris Buddle / 7 Comments

Some time ago I wrote a post about the need to have plain language summaries for research papers. That post generated terrific discussions, new collaborations and many ideas, and I am now trying to write plain language summaries of my own research as it gets published. The goal of this current post is to provide some guidance about how to write plain language summaries. This work does not come from just from me, but rather from continued discussions with others, notably Mike Kelly and colleagues over at TechTel. The idea of plain language summaries resonates with so many people, from the business and marketing community, journalists, through to science writers, researchers and academics. I am continuing to work with Mike, and will share more as our ideas and projects develop. For now, however, it’s timely to provide some idea about how to write plain language summaries. As usual, your ideas, opinions, and comments are always welcome!

To revisit, what are plain language summaries?

Plain-language summaries are a way to communicate a scientific research papers to a broad audience, in a jargon-free and clear manner. Jargon is defined as technical terms understood only by specialists in a field of study.  In this post, I am assuming that plain language summaries are aimed at a ‘scientifically literate‘ audience, but an audience that is not specific to a discipline. Most scientists who publish in the peer-reviewed literature are familiar with Abstracts – which are a short synthesis of the research, and which typically highlight the research objectives, method and main findings.  Abstract are typically aimed at the audience that will read a specialized journal, but often contain technical terms, and typically jump into a specialized topic quickly and concisely.  A plain language summary is different because it focuses more broadly, is without jargon, and aims to provide a clear picture about ‘why’ the research was done in additional to ‘how’ the work was done, and the main findings.

Plain language summaries are a valuable contribution as they allow research to be accessed by a broader audience, and because the people who do the research write them, the findings are directly from the source and should capture the proper context for the research. Plain language summaries can provide a means to promote research, whether it is through a publisher, on the blog of a scientific society, or for a University’s Media Relations Office. Department Heads and Deans can take these summaries and both understand and promote the high quality science done by their Professors, research scientists, and students. Journalists could read these summaries and not have to wade through technical terms, and have a higher probability of getting the message right. Colleagues can better understand the work that all scientists do, even when disciplines are quite far apart. Other scientists, journalists, the public, government officials, friends and family, can all better understand science if all research papers were paired with a plain-language summary. Plain language summaries make research available, tangible, and are a way to truly disseminate research findings to all who are interested.

How to write a plain language summary:

The first, and perhaps most essential step, is to explain ‘why’ the research was done. The overarching reason and rational for the research must be explicitly stated in general terms. It’s easy to slip into the habitat of justifying research because “Little is known about x, y or z”.  However, this is not adequate for a plain language summary – ‘something’ is surely known on the topic, it’s just a matter of defining that ‘something’ and explaining how the work is expanding beyond, perhaps to a new research direction, or in a different model system.  Mike Kelly, from his perspective (and background) in marketing, was particularly instrumental in helping recognize that the “why” of research is vitally important, and explaining this should never be taken for granted. Scientists need to start a plain language summaries from a broad, ‘big picture’ and more general framework, and work to place their research paper within this context: they must address and answer the ‘why’.  It takes a lot of time to define the ‘why’ and describe it to a broad audience – take the time – it will make the other steps much easier.

The second step is to state the more specific objectives of the research.   This should flow easily from the first step if there is a clear rationale for the work. The research question is a continual narrowing down to a finer study topic, logically flowing from a big picture overview of the discipline into which the research is nestled. A research objective could be phrased as a question, or goal, and may have several sub-questions.

The third step is to explain ‘what’ you did to answer the research objective. Too much detail will be overwhelming and confusing, too little will not allow the reader to envision how things were done. Try doing a flow-chart that depicts the process of the science, and use this as a guide to writing how the work was done. The goal of a plain language summary is not to allow other scientists to follow your methods, but rather to provide readers with a sense of how you did the work, in broad brushstrokes.

The fourth step is to provide an interpretation of results and make them relevant. Unlike a scientific paper, which typically presents results in a linear fashion and independent of a discussion, plain language summaries should integrate the results with a discussion or interpretation. A plain language summary should show readers how the results to fit together and provide insights into the bigger framework or context of the research. It is not necessary to provide all the results, nor is it necessary to provide specific details about each observation of experiment; rather, the results must tell a story and inform the readers of what you found and why the findings are important relative to your research question. The end of your summary should scope out again, and leave the readers will a strong and positive sense about the contribution of your science to the big-picture that you developed at the start.

The last step is to go through the plain-language summary with a keen eye for meaning and jargon.  Assess each sentence and see that the writing is drawing out the meaning from the research, whether it is a description of the study organism or system, or a rationale for quantitative modeling. Without attention to meaning, at all levels, a plain-language summary will be a re-packaged Abstract, which is to be avoided.  Circle or highlight all terms that could be considered jargon  – have a friend, an uncle or a colleague from a different discipline read over the work to confirm that the jargon is gone.  When jargon is identified, rewrite in non-technical terms – it will take more space, but this is better than having terms that cannot be understood by a general audience.

Then: edit, edit, and edit again.

Some hints….

  • If you are visual person, draw the plain language summary before writing it, this will help draw out the meaning and allow you to understand the flow of the summary and how the different sections fit together.
  • It will likely be helpful to first write your plain language summary with headings.  Use headings such as “Why we did this work”, “How we did this work”, “What were the interesting things that we discovered”, etc. Afterwards, re-work the summary to remove the subheadings.
  • Don’t talk down to your audience. A common mistake is the ‘dumbing down’ of the research and this must be avoided. As mentioned, you are assuming the audience for this summary is scientifically literate, and thus you need to speak to them in this way.
  • Aim for about 500 words – more is too much, fewer can be difficult, especially if your research is highly technical.
  • Have your summaries read by other people outside of your discipline, and then have them explain it back to you. If it’s a good summary, the explanation of your own work should be clear, accurate and precise.  If it’s not, find out the trouble-spots and re-work the summary.
  • Finally, don’t rush the process. Plain language summaries are very difficult to write; they take time, and often draw upon skills that have not been part of a researcher’s typical training. Write the summary, leave it for a day or two, and come back to it. It is very important to get it right, as these summaries have the potential to be read by many more people than would normally read a scientific paper within a journal.

In sum, I hope you find that there is value in plain language summaries, and that this guide provides some ideas about how to write one.

You may have more tips or better ideas – please share! (comments welcome…!)

On the game of Academic Publishing

/ Chris Buddle / 2 Comments

Back in March, I was asked to present a talk to Professors at Cape Breton University about finding success with Academic publishing.  This was in part because of my own experience with publishing, but also in my role as Editor-in-Chief for The Canadian Entomologist.  This talk took some time to put together, but it was a lot of fun to think in detail about how the publishing ‘game’ is changing, and how’s it is difficult to navigate – especially for early-career Academics.

In this post, I am pleased to share my presentation with you – I hope it is useful to some, and I hope it sparks discussion about finding success in publishing.  I realize some things were missed, and the presentation itself is rather static and cannot capture the dynamic discussion that was part of the seminar given at Cape Breton.

Please share!

Taxonomic sufficiency in biodiversity research: Is it always necessary to identify species?

/ Chris Buddle / 10 Comments

It’s been a successful few weeks in the lab!  Two weeks ago I promoted an exciting paper about spider silk and herbivory and just after that paper come out, another publication from our lab was published, titled: “Does species-level resolution matter? Taxonomic sufficiency in terrestrial arthropod biodiversity studies“.  This paper evolved out of a past graduate-level class in Forest Entomology at McGill, and was re-worked and re-written by post-doc Laura Timms, former Phd student Joseph Bowden, and my colleague Keith Summerville.

Let me provide a plain language summary of this work and I will also touch upon some of the controversy that has arisen because of this paper:

Biodiversity science is about the discovery and description of all the different kinds (species) of organisms living on our planet.  It is a vitally important area of research because different species play important roles in our ecosystems, and as a consequence, are important to us.  The different number of species in an area can also inform us about how we might be harming or helping ecosystems.  This is an active area of study in the context of forestry, since some forest practices (for example, cutting all the trees down in an area) can cause changes in the number of species (and whether they are rare or common) and these changes can inform us about whether our forestry practices are harming our ecosystems.  All of this kind of work, however, depends on the ability of scientists to collect, sort, and identify different kinds of species.  Since most described species on the planet are Arthropods (e.g., spiders, insects, and their relatives), these animals are often used as a way to indicate how biodiversity might be affected by environmental change.  However, there is a problem: it takes a very long time to identify different arthropods, and it is costly and difficult – requiring highly specialized training, by people known as taxonomists.  In our research project, we asked whether not you always need to know the exact differences between insects and spiders  in order to tell if a disturbance is affecting biodiversity.  We did this by looking at a series of data-sets about beetles (Coleoptera), moths & butterflies (Lepidoptera), and spiders (Araneae). These data-sets were from past research projects about how forest disturbance affects biodiversity.

Here is how we did the work: Different kinds of organisms are classified using a two-part name:  the genus and the species.  There can be many different species within one genus.  You can then classify different genera (the plural of genus) into grouping called Families.  For example, all wolf spiders are in the Family Lycosidae.  A common genus within this family is Pardosa – there are dozens of species of Pardosa in Canada; Pardosa mackenziana, Pardosa moesta, Pardosa hyperborea, etc.  We first took our big data-sets and using the lowest level of naming (the species) we asked whether forest disturbance affected biodiversity.  We then grouped all our species into their respective genera -this meant that the data-sets got smaller (i.e., there are necessarily fewer genera than species).  We did the same analysis to see if we could still get a signal about the effects of disturbance on biodiversity, but now with the ‘reduced’ data.  We did this again at the family level.  We did this because we wanted to know if you could take a short-cut. Stated another way, if you don’t have the time or ability to figure out all the species in your research project, can you still see if there is an effect of forestry on biodiversity?

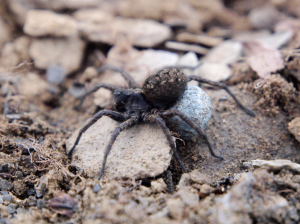

A wolf spider (Lycosidae)

A wolf spider – do you need to know its name?

Our results showed that in most cases, you do not need to know the species identity to see the effects of forestry practices on the biodiversity of spiders, beetles and moths & butterflies – you do not get as clear answers when things were grouped into Families, but the datasets with species grouped into genera were almost as good as when you group things into species.  This was surprising, because an assumption in biodiversity science is that species-level identifications are necessary and should be the ‘gold standard’ for this kind of research.  We showed that in many cases, you can get your answer by identifying arthropods to the generic level:  this can save you a lot of time (and money).   Some researchers (including taxonomists) may not be thrilled with this result as it might suggest that species are not important, and specialized taxonomic knowledge is not essential to complete biodiversity research.  This is certainly not the case, which leads me to the caveats:

1) Our results do not mean species are not important!  Instead, we are saying that if there are logistical and financial constraints, you might be able to answer your research question without having to identify all the species.   If you have a project about large-scale disturbance and are looking to see whether there are any broad affects on biodiversity, our approach might work.   However, you might miss some subtle effects, so this approach must be taken with caution.  Although our suggestion is a short-cut, it would still be important to save all the samples, and at a later time (as money and expertise permits) the species could be determined.

2) Our study is specifically geared towards research about insects and spiders in relation to large-scale forestry disturbances.  We are not saying that this will work in all situations and with all different kinds of organisms! The context is important.  Related to this, if an overarching research question is about species in an ecosystem, species-level identifications are essential.  Everything depends on the research question and the research context.

3) This general approach that we have discussed is highly dependent on what kind of organisms you are studying.  If you are working with a group of organisms that do not have too many different species within a genus, our approach may work.  If, however, there are many species within a single genus, our suggestion will not work as well.  Therefore, a researcher should look at the general relationship between the number of species per genus for their study organisms and use this ratio as a guide when thinking about taking the short-cut that we discussed in the research.

In sum, we are quite excited about this research – we think it will provide more opportunities for biodiversity projects to get done, and will help answer certain research questions when there are substantial constraints on time and money.  This is one way to be pragmatic about biodiversity research.

Please share your thoughts!

Reference:

Timms, L., Bowden, J., Summerville, K., & Buddle, C. (2012). Does species-level resolution matter? Taxonomic sufficiency in terrestrial arthropod biodiversity studies Insect Conservation and Diversity DOI: 10.1111/icad.12004

Fear factor: spider silk reduces plant damage

/ Chris Buddle / 8 Comments

Today I am excited to report on research published with Ann Rypstra, a most wonderful person and exceptional spider ecologist.  Here’s the take home message from our paper, titled  “Spider silk reduces insect herbivory” (Rypstra & Buddle 2013):

In the presence of spider silk, insect herbivores eat less plant material  – and the spider doesn’t have to be around to see this effect!

A spider’s web, made with silk. Photo courtesy of M. Larrivee (reproduced here, with permission)

Here’s a plain-language summary of the research:

Spiders are important in agricultural systems because they eat many insect pests that in turn eat valuable crops.  Spiders also leave behind silk as they move through an agricultural field – sometimes this silk is there because it was part of a web that was constructed to catch prey, or sometimes spiders leave silk in the form of a ‘drag-line’ – a kind of silk that acts as a safety-line for a spider.  Whatever the means, the agricultural landscape contains plants, their insect pests, spiders and spider silk.  In this work, we wondered whether  silk, in the absence of a spider, would still cause the insect pests to be wary, and feed differently than if there was no spider silk in their environment.

We used laboratory and field-based experiments for this research, and we used two pest species – the Japanese beetle and the Mexican bean beetle.  These pests were allowed to eat either leaflets or whole plants of bush-style snap beans.  The plants or leaflets were either left alone, or were adorned with five strands of spider silk or with five strands of silkworm silk.  We included the silkworm silk (i.e, produced from the silkworm moth) because we were curious about whether the beetles might respond to ANY silk instead of silk produced specifically by spiders.  To extract the spider silk, we allowed a long-jawed orb-web spider to hang from its drag-line, and we wound its silk around a stick as the spider bobbed up and down – in this way we could get enough silk for the experiments. We found that when spider silk was on the plants, the insects inflicted less damage compared to when there was no silk.  The silkworm silk also caused the insects to feed less, but the effect with silkworm silk was less than with spider silk.  We also wondered whether this response could just be because the silk got in the way of the beetles, and so we did some experiments with human hair, and a strand of kevlar – these are both ‘silk-like’ strands but since they did not come from an insect or spider, would only represent the physical nature of the silk rather than have any other chemicals or smells from the silk produced by a insect or spider.  This additional experiment showed us the same results: the insect pests still ate less when on plants containing silkworm silk or spider silk compared to those with the kevlar or human hair.

All these experiments, combined, tell us that there is something very special about spider silk, and it causes pest insects to eat less plants.  In ecology this is dubbed an ‘indirect’ effect – the spiders do not have to eat a pest insect to cause it to change its behaviour! It is also called a ‘non-consumptive effect’ – meaning the effect of the spider on its prey is not through the act of eating the prey, but rather by changing prey behaviour by other means.  This work is fascinating because it shows that spiders have a much more important role in agricultural systems than we realized before: spiders do not have to be present to cause insects pests to eat less – as long as they were there, and produced silk as they moved through their environment, their potential prey will live in a ‘landscape of fear’.  Or, the insect pest is living in fear of spiders because of their silk.

Here is a more technical summary, placed within a broader ecological context:

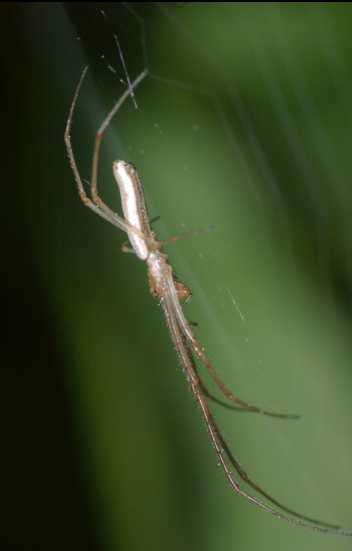

Tetragnatha – a long-jawed orb-web spider. Photo by Lee Jaszlics, reproduced here with permission

The pest insects (the beetles) in our study system recognize the silk is coming from a potential predator (the spider), and this means they alter their behaviour, or LIVE IN FEAR!  This work fits within the broader literature about the landscape of fear (e.g. see Laundré et al. 2012), or ecology of fear sensu Brown et al. (1999). The idea here is that prey are shifting their behaviours depending on predators, and so the prey’s overall ‘landscape’ is peaks and valleys related to the strength and type of interactions (direct or indirect) caused by the predator.  To anthropomophize this even more: fear induces behavioural changes in prey; they are scared and this fear has real and measurable effects.

Although a lot of this kind of research is with vertebrates, there are some interesting examples from the arthropod world.  One recent example is by Hawlena et al. (2012) – in this work, grasshoppers that were raised in an environment of fear (via continual exposure to spiders whose chelicerae were glued shut) had different Carbon:Nitrogen ratio in their bodies relative to controls, and this affected plant litter decomposition.  So, the ‘fear factor’ changed the elemental composition of grasshopper’s bodies and eventually this affected the decomposition process!  In Hlivko & Rypstra’s (2003) work, a leaf-eating beetle, when exposed to a range of cues produced by spiders (this included feces, silk and other chemicals) ate less plant biomass compared to controls, and the strongest effect was from cues of the largest spider.   Within the context of fear – the largest (and presumably the most feared) spider, can elicit a response in its prey which results in an affect on plant biomass.  Our paper is taking this one more level, and focuses on the silk as a key ‘cue’ that induces the behavioural change in the prey.

Our results show that insect pests that feed on plants in agroecosystems may be living in a landscape of fear that is brought on by one of the most common substances produced our eight-legged friends…the silk.  This silk acts as an important cue for the insect pests and they eat less plant material because of this.   This research also shows the added value of spiders in agroecosystems; conservation of spiders, or even habitat manipulations to encourage spiders to live in agroecosystems, could have many pay-offs.

The study species in our research: Tetragnatha (photo courtesy of M. Larrivee, reproduced here with permission)

Thanks to Max Larrivee and Lee Jaszlics for permission to use their wonderful photographs!

References:

Brown, J., Laundré, J., Gurung, M., & Laundre, J. (1999). The Ecology of Fear: Optimal Foraging, Game Theory, and Trophic Interactions Journal of Mammalogy, 80 (2) DOI: 10.2307/1383287

Hawlena, D., Strickland, M., Bradford, M., & Schmitz, O. (2012). Fear of Predation Slows Plant-Litter Decomposition Science, 336 (6087), 1434-1438 DOI: 10.1126/science.1220097

Hlivko, J., & Rypstra, A. (2003). Spiders Reduce Herbivory: Nonlethal Effects of Spiders on the Consumption of Soybean Leaves by Beetle Pests Annals of the Entomological Society of America, 96 (6), 914-919 DOI: 10.1603/0013-8746(2003)096[0914:SRHNEO]2.0.CO;2

Laundre, J., Hernandez, L., & Ripple, W. (2010). The Landscape of Fear: Ecological Implications of Being Afraid~!2009-09-09~!2009-11-16~!2010-02-02~! The Open Ecology Journal, 3 (3), 1-7 DOI: 10.2174/1874213001003030001

Rypstra, A., & Buddle, C.M. (2012). Spider silk reduces insect herbivory Biology Letters, 9 (1), 20120948-20120948 DOI: 10.1098/rsbl.2012.0948

ResearchBlogging.org
